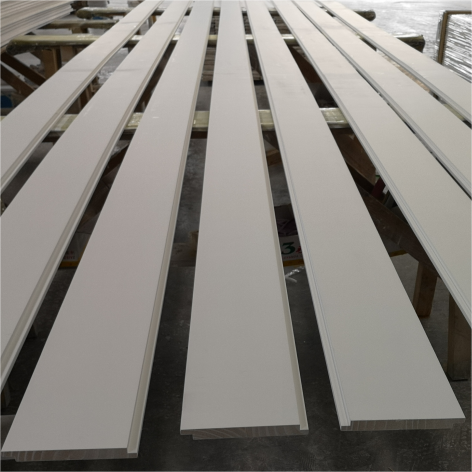

Interior Wood Trim Primed Shiplap Wall Panels
User Pain Points
Wall panels installation on-site also encounters the same challenges: misalignment resulting in joints with gaps or steps that have to be filled; un-smooth surface necessitating extra sanding prior to painting; and inconsistent sizes that cause workers to spend time sorting them out. All these problems can easily take one hour or more in addition to the usual installation period and the risk of having an uneven installation.
Our Solution

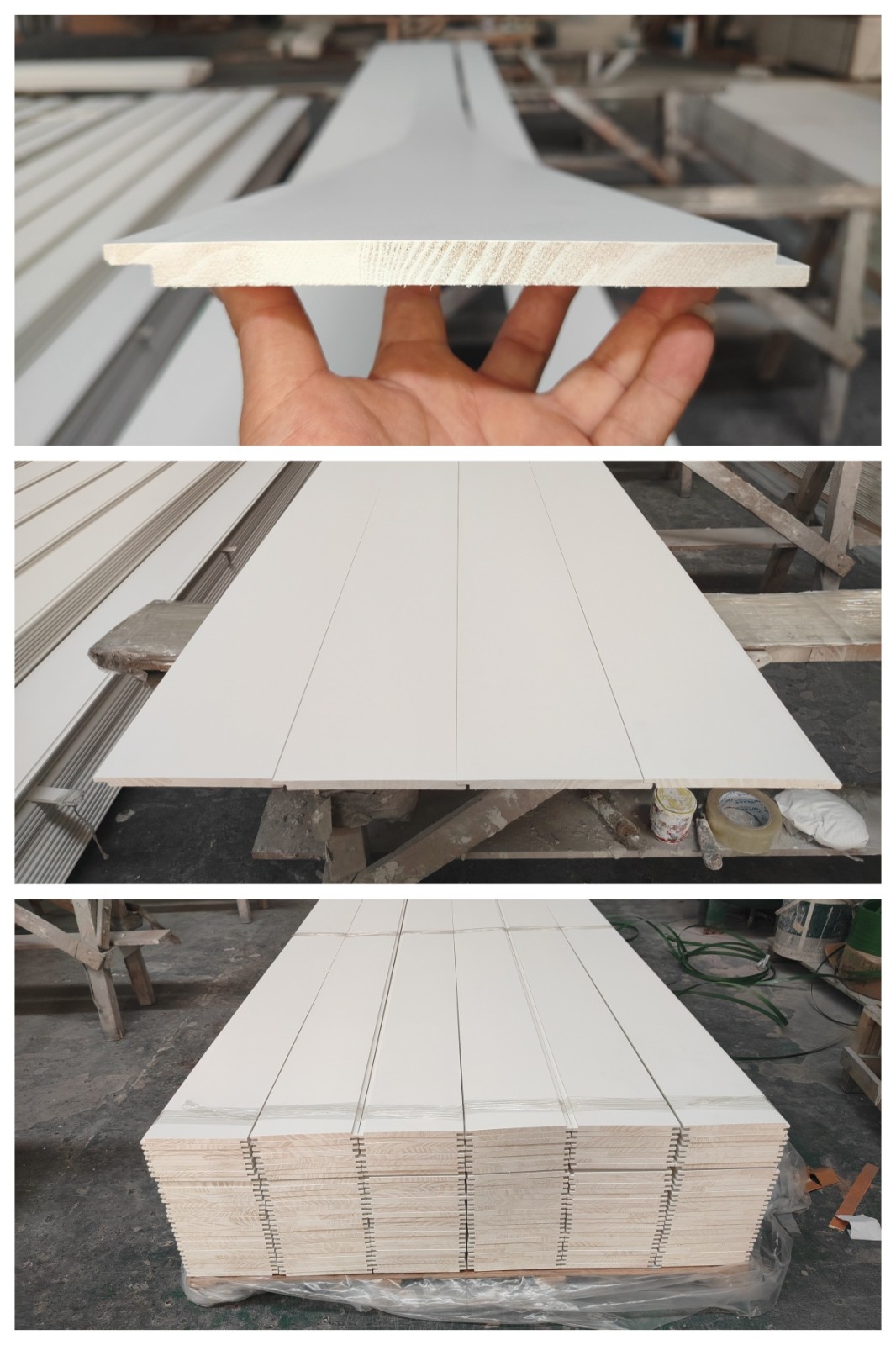

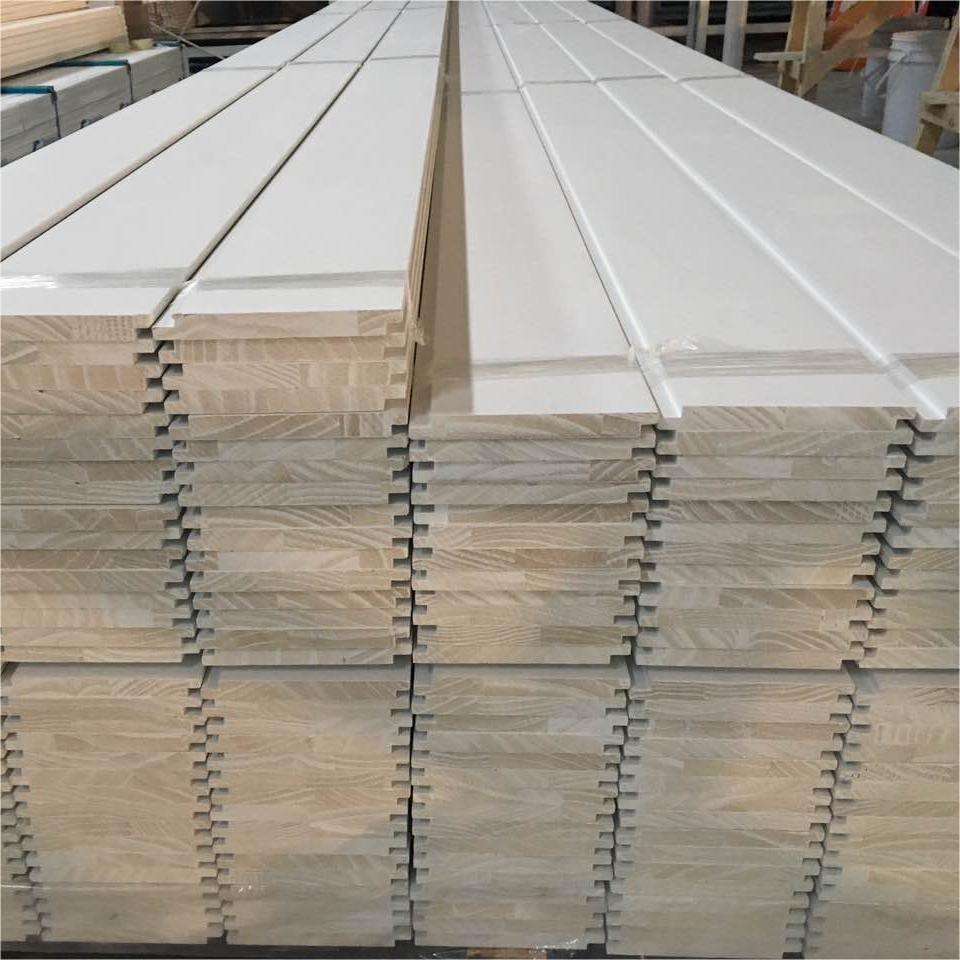

We use a precision tongue-and-groove milling process for our primed shiplap panels to ensure that the joint clearances will be reduced to the bare minimum - <=0.3mm, allowing joints to work effortlessly without any gapping problem. The surface is sanded to 180 grit and primed using water-based primer (≥25μm DFT) – no further on-site prep is required to apply the topcoat.
The size tolerance is ±0.8MM (width/thickness) and length tolerance is per industry standard to ensure that all panels fit perfectly at their intended places. MR MDF with swell rate of ≤8% is available where moisture tends to accumulate. This will lead to less tool usage, rework and callbacks - measurable time saving on every project.
Choose the Right Interior Wood Trim Primed Shiplap Wall Panels for Different Projects
Different interior spaces need walls with various types of performance, hence picking the right wall panels can not only save installation time but also prolong the life and attractiveness of the walls.

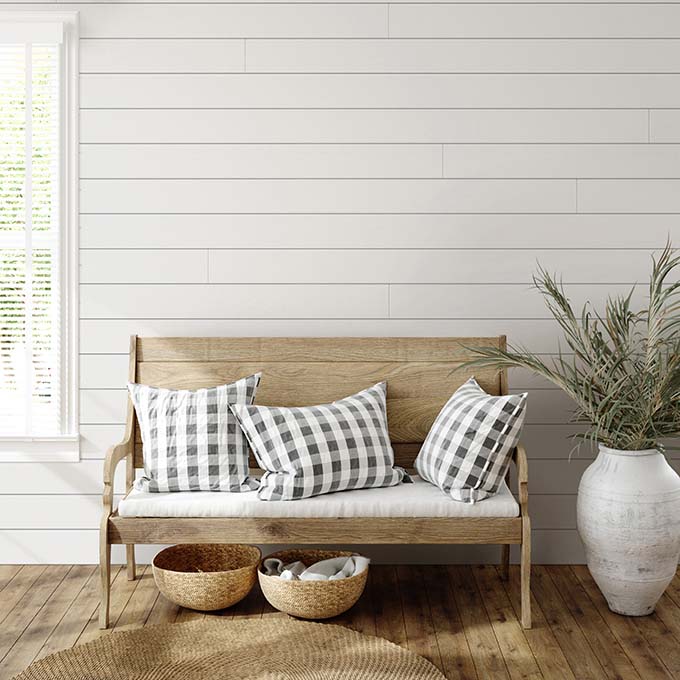

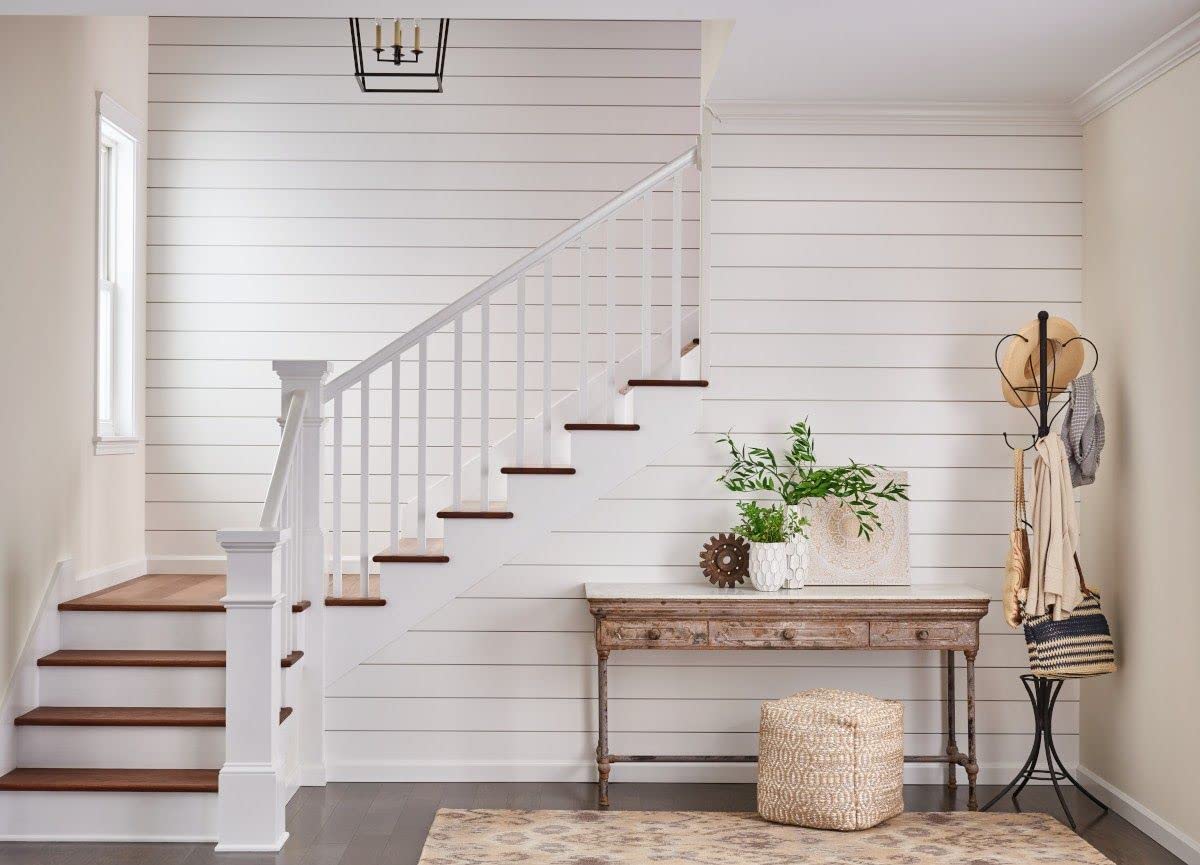

ResidentialHomes: We recommend 9mm of Pine wall panels with a gesso coat. It is light and relatively cheap material, with an advantage of wooden texture and possibility of an even paint coverage—perfect for warm interiors. MDF option is also available.
Hotels & Hospitality: We recommend to use 12 mm pine wall panels with a gesso coat. Its uniform texture and stable size make it perfect for large-scale projects and save time at the installation stage at the site. MR MDF option is available for high-humidity locations.
Commercial & Retail: Recommended 12 mm pine primed shiplap with a gesso coat. Durable, resistant to damage and easy to clean – perfect for busy zones. MDF option is available for smooth painting.
Office Buildings: We recommend a gesso coat of 9 mm pine primed shiplap. Fast installation and identical color on each floor require minimal work on the site.
The correct choice of profile, along with a correct choice of interior wood trim will increase the speed of your installation process, reduce the number of mistakes and allow you to get a perfect result at the end of your project.
Product Features for Interior Wood Trim Primed Shiplap Wall Panels
| Product Name | Interior Wood Trim Primed Shiplap Wall Panels |
| Material: | MDF, PINE, MR MDF |
| Size Tolerance | Cutomized size, according to the drawings; Tolerance: Width: +/-0.8mm, Thickness: +/-0.8mm, Length: +0-2mm |
| Delivery Date | Within 45 days after receipt of your deposit |
| Packing Method | Products are packed with shrinkable PVC film and plywood pallets to ensure safe transportation and reduce damage during shipping. |
| Customization Capability | Size / Profile / Color / Surface Finish / Logo customization available. |
| MOQ | Our standard MOQ is a 40HQ container. However, to support trial orders, we can accommodate a 20GP container with the flexibility to mix 2-3 different products. |
Production, Quality Control & Packaging for Interior Wood Trim Primed Shiplap Wall Panels
We make our interior wood trim primed shiplap and wall panels using our strict and high-standard production system, such as:
Timber Selection: The best timber is selected and processed into boards, and production starts.
Kiln Drying: To preserve the characteristics of the wood and make it stable, timber is kiln dried up to 5% – 7% moisture content.
Moisture Conditioning: Timber is kept in the storage of our warehouse for over 20 days. The moisture content gradually reaches 8% – 12%, which is its stable level. It is particularly important because it minimizes the risk of deformations of the wood during production.
Precision Machining: Using WEINIG four-side moulders, the contours are formed, and the precision of the cuts is ±0.15mm, which guarantees perfect fit of the panels.
Primer Coating: Firstly, two layers of primer are applied, then intermediate sanding is performed. And finally, water-based finish coat is used that gives the wall panel a smooth surface.
Quality Check: An employee checks each of the details of the size, machining, surface quality, and finishing before packing to make sure that all parts fit.

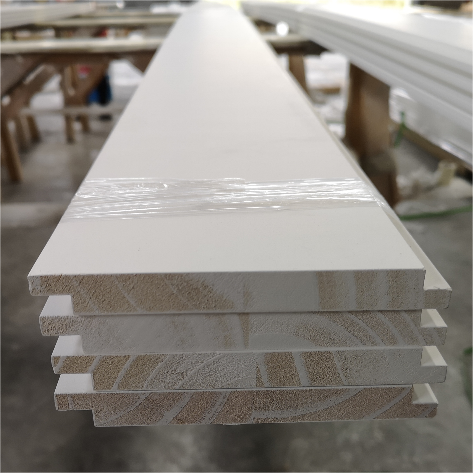

Export Packaging: At first, the products are protected from environmental conditions with shrink film and then placed on wooden pallets, which ensures their safe arrival.
All the wood interior trim pieces are carefully checked to ensure that they have the same quality and that they can give good performance through their entire service life.
Certification
Year Established: 2008 (16+ years in wood moulding)
Factory Area: 18,000 m² (covered production + warehousing)
Production Lines：6 fully automated moulding lines + 4 sanding/painting lines
R&D Team：12 senior engineers + 8 quality control technicians
Production Capacity: 200 x 40HQ containers per month
Certifications: ISO 9001:2015 (Quality), FSC® (Forest Stewardship Council), CARB Phase 2 (low formaldehyde), CE (European safety), SGS test reports
Export Markets: USA, Canada, Germany, UK, Australia, New Zealand，Netherlands, Belgium (35+ countries)
Meeting Customers Around the World
We participate in trade fairs like the WMA Annual Convention & Tradeshow and the BAU Exhibition because it is essential for the development of our international relations. It is through these direct engagements that we move closer to grasping the evolving demands of the market while at the same time ensuring the competitiveness of our products in North America, Europe, and Australia.
FAQ
Yes, samples can be provided in order to check the quality and profile before starting the large-scale production.
We are open to OEM and customized production based on customer drawings, samples, or specifications.
Yes, we offer customized branded items, tags, barcodes, and exclusive packaging.
We usually accept T/T payment. Other payment methods can be discussed based on cooperation requirements.
Standard lead time: 45 days after order confirmation. Custom profiles: 45-65 days depending on tooling complexity
Products are packed with shrinkable PVC film and plywood pallets to ensure safe transportation.
Yes, we support mixed container loading. For trial orders, we can accommodate a 20GP container with the flexibility to mix 2-3 different products.
8. What shipping methods do you provide?
Working mainly through sea freight, we can handle most of the container shipment arrangements and also assist in export and shipping.
There are raw, primed, and pre-painted options available in our product line upon the customer's choice.
For trial orders, we accept 1×20GP with 2-3 product types mixed (subject to minimum quantity per type).
About Our Company & Inquiry
We manufacture interior wall panels, primed shiplap, and interior wood trims of various sorts. We maintain the same high standards worldwide by offering a broad product range and an individual service system within an export business model, keeping in mind all our customers’ demands. Thanks to our extremely high production volume, we can deliver up to 200 containers per month, which means that you do not need to think twice about turning to us for your big contracts and orders.
Our production facilities are located both in Southeast Asia and China, which allows us to run our production effectively and at the same time maintain our high-quality products. We have received FSC and CARB certification, demonstrating our approach to sourcing sustainable and responsible raw materials for our international customers.
👉 Do not hesitate to contact us if you want to receive a price quotation, samples, or individual solutions for your next interior wall project.
